230V Perkins Diesel Generator Set 403A-15G1

Brand Name : Perkins

Model Number : AP12

Certification : CE, ISO9001, EPA

Place of Origin : CHINA

MOQ : 1 set

Payment Terms : L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 200 sets per month

Delivery Time : 20-30 days

Packaging Details : film and foam package

Rated voltage : 230V/400V,277V/480V,127V/220V,220V/440V,

Frequency : 50HZ/60HZ

Speed : 1500rpm/1800rpm

Rated Current : 20A

Output type : AC Single phase, AC Three phase

Rated power : 8kw/10kva

Controller : Deepsea, Smartgen

Engine brand : Perkins

Alternator : Leroysomer, Stamford, Meccalte, Marathon etc

Type : Open and Silent

Fuel tank : 8 hours base fuel tank

Protection class : IP22, IP23

Contact Now

USA EPA approved 8kw 10kva Perkins water cooled industrial diesel generator set


Ai power UK Perkins industrial generator set adopts Perkins engine as the power source. It’s one of the world’s leading diesel engine manufacturers since 1932, produced nearly 400,000 engines for one year and quickly occupied the world market for the full specification, good structure, reliable performance, easy maintenance, low exhaust and long period maintenance. Perkins service network is in more than 180 countries and regions.

230V Perkins Diesel Generator Set 403A-15G1 230V Perkins Diesel Generator Set 403A-15G1

Perkins Diesel Engine Specification

Engine manufacturePerkins Engines Company Limited
Engine brandPerkins
Engine model403A-15G1
Engine speed (rpm)1500
　Prime powerStandby power
Gross engine power (kWb)12.213.5
Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW)10.411.6
Cylinders3-cylinder, vertical in line
Cycle4 stroke
Induction systemNaturally Aspirated
Compression ratio22.5:1
Bore * Stroke (mm)84*90
Cubic capacity (Litre)1.496


Stamford Alternator Specification

Alternator manufacturerCummins Generator Technologies(China) Co. Ltd
Alternator brandStamford
Alternator modelPI044E
Control systemSELF EXCITED
A.V.R.Included
Voltage regulation±1.0%
Insulation systemClass H
ProtectionIP23
Rated power factor0.8
Winding pitchTwo thirds
Winding leads12
Frequency (Hz)50
Voltage (V)400
Phase3
Output ratings (kVA/kW)　
----------------Cont.H-40°C10/8
----------------Standby-27°C11/8.8
THF<2%
TIF<50
Max. overspeed (Rev/Min)2250
BearingSingle

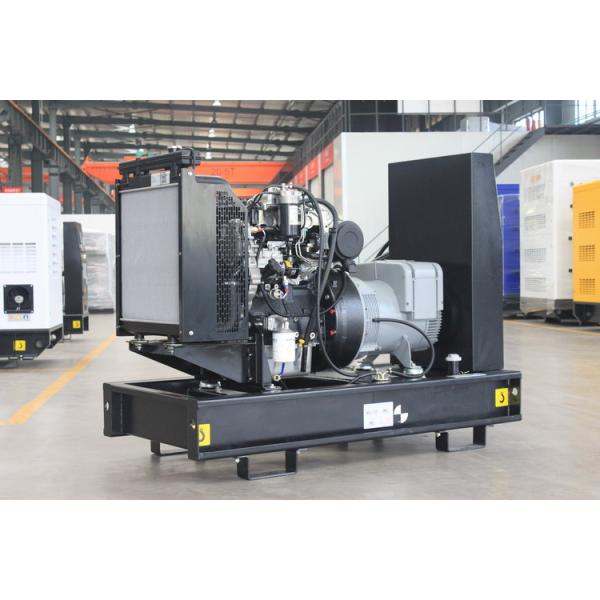

Perkins Open Diesel Generator Sample Photos

230V Perkins Diesel Generator Set 403A-15G1 230V Perkins Diesel Generator Set 403A-15G1

Perkins Silent Diesel Generator Sample Photos

● More than 2mm thick steel to make the canopy.
● High quality paint materials and strict powder paint processing.
● large-scale impedance combined type silencer effectively reducing noise of the generator.
● Stainless steel door locks and hinges and 180° revolvable and disassemble door for easy maintenance.
● High quality soundproof and insulation materials could efficiently reduce noise.
● Transparent viewing window make the control panel clear at a glance.
● Lifting ear is mounted in the base frame for easy pull.
● Elegant appearance and reliable quality.
● From 10kva to 700kva we use normal silent canopy, more than 700kva we are using containerized canopy.
● ISO standard 20’, 40’ and 40HQ sea container canopy for options.
● Standard sea container canopy is easier for shipping.



230V Perkins Diesel Generator Set 403A-15G1

Control Panel Specification

The DEEPSEA DSE 6120 is an Auto Mains (Utility) Failure Control Module developed to provide a wide range of operating and monitoring features for single diesel and gas gen-sets. DSE7320, ComAp AMF25 etc. for option.

230V Perkins Diesel Generator Set 403A-15G1

Perkins Generator details

230V Perkins Diesel Generator Set 403A-15G1

AI POWER FACTORY TOUR

AI POWER is the professional manufacturer of power generator, light tower and reefer container generators in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 3000kw at competitive prices. Besides generators, we also product the refere product incldue lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system.

230V Perkins Diesel Generator Set 403A-15G1

PACKING AND DELIVERY

230V Perkins Diesel Generator Set 403A-15G1 230V Perkins Diesel Generator Set 403A-15G1
